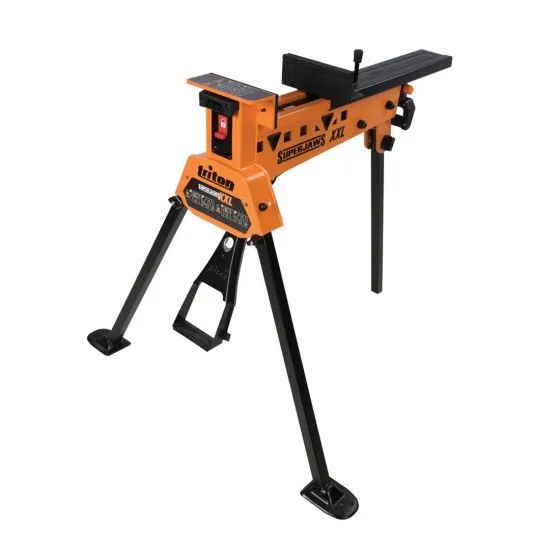

Triton SJA100XL SuperJaws XXL Portable Clamping System

Triton SJA100XL SuperJaws XXL Portable Clamping System

The Triton SJA100XL SuperJaws XXL Portable Clamping System is a robust, powder-coated, all-steel construction designed for a long-lasting service life. Powerful 1000kg clamping force for controlled clamping pressure. Clamping range 0-1000mm / 0-39″. Foot-operated clamping allows hands-free operation. Extra-wide tripod base maximises stability for large workpieces.

FEATURES

• Reversible sliding jaws allow extra-wide 1000mm clamping width capacity
• Urethane jaw facings provide protective, slip-resistant grip
• Foot-operated clamping frees hands for full control of the job
• Improved frame and leg design allows setting up and folding down in seconds
• Stand-alone design allows 360° access to the work
• Tripod base for stability and safe operation on uneven surfaces
• Rear handle for carrying with ease

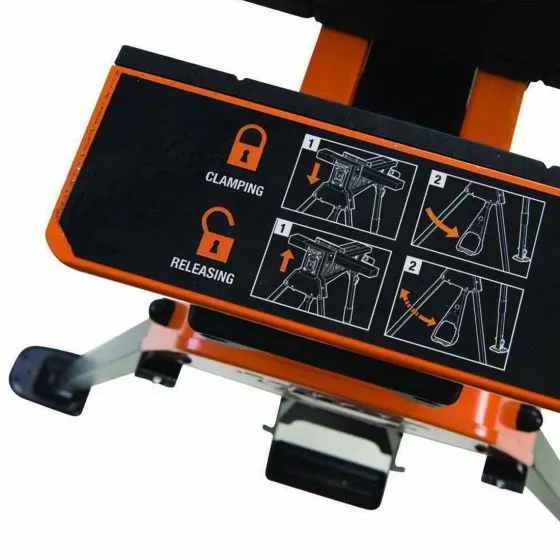

• Lock / release switch allows fast, trouble-free release of the jaws
• Quick-release legs for safe and quick assembly

SPECIFICATION

• Maximum Load Capacity: 250kg
• Clamping Force: 1000kg
• Finish: Painted
• Folded Size – Height: 325mm
• Folded Size – Length: 780mm
• Folded Size – Width: 345mm
• Material – Primary Construction: Steel
• Product Height: 890mm
• Product Length: 1005mm
• Product Width: 960mm
• Product Weight: 21.5kg
