Panasonic EY76A1LJ2G Dual Voltage 14.4v/18v Impact Driver Inc 2x 5.0Ah Batts

Panasonic EY76A1LJ2G Cordless Brushless Dual Voltage 14.4v/18v Impact Driver Inc 2x 5.0Ah Batteries, Charger and Systainer T-LOC 2 Carry Case

Compact and lightweight body combining durability and speed

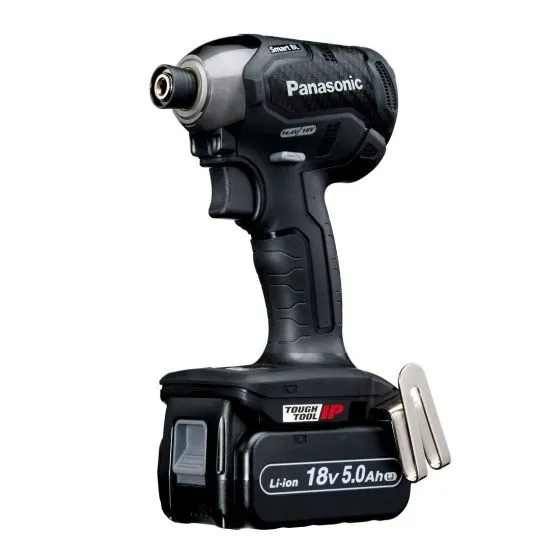

The Panasonic EY76A1 Impact Driver features Panasonic’s new “Smart BL” technology – more powerful continuous work thanks to new Brushless technology and the new air flow design, combining to give dramatically improved continuous durability under heavy load, such as when driving long screws or drilling into wood using a flute woodboring bit.

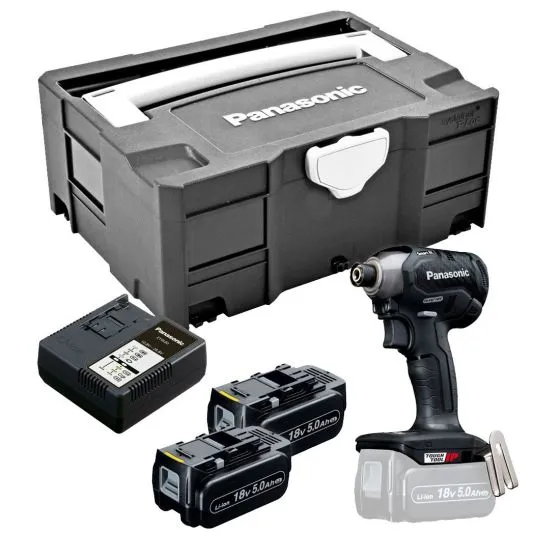

The EY76A1LJ2G kit comes complete with 2x new ‘J-Type’ EY9L54 5.0Ah Li-ion batteries with ‘Dynamic Capacity’ – the highest Li-ion battery capacity without increasing size over the 4.2Ah, an EY0L82 10.8-28.8v universal multi-voltage charger and a Systainer T-LOC carry case with inlay.

FEATURES

• Smart BL – maximised tool performance with optimal brushless motor output
• New airflow design – air flow provides efficient cooling to centre of coils as well as around motor

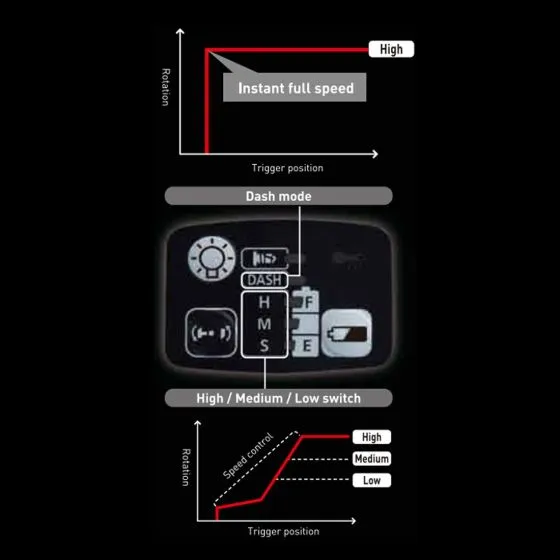

• DASH mode allows the unit to reach full speed instantaneously giving maximum performance
• Improved torque and motor speed compared to its predecessor
• New dual LED work light helps avoid shadowing on your work
• New longer bit holder socket and tampering collar design make accessory changes quick and simple
• The base of the device includes storage space for 2x 65mm bits (to left and right)
• Includes the Panasonic TOUGH TOOL IP technology (IP = Intelligent Powertool)

SPECIFICATION

• Voltage: 14.4v / 18v Dual Voltage
• Chuck: 6.35mm / 1/4″ HEX
• Maximum Torque (18v): High Mode: 170Nm
• Maximum Torque (18v): Medium Mode: 150Nm
• Maximum Torque (18v): Low Mode: 26Nm
• Maximum Torque (18v): DASH Mode: 170Nm
• No-Load Speed (18v): High Mode: 0-2800 Rpm
• No-Load Speed (18v): Medium Mode: 0-1450 Rpm
• No-Load Speed (18v): Low Mode: 0-950 Rpm
• No-Load Speed (18v): Self-Drilling Mode: 0-2800 Rpm
• No-Load Speed (18v): DASH Mode: 0-2800 Rpm
• Impacts Per Minute (18v): High Mode: 0-3100 Ipm
• Impacts Per Minute (18v): Medium Mode: 0-2500 Ipm
• Impacts Per Minute (18v): Low Mode: 0-1800 Ipm
• Impacts Per Minute (18v): Self-Drilling Mode: 0-2500 Ipm
• Impacts Per Minute (18v): DASH Mode: 0-3100 Ipm
• Screwdriving Capacity (5.0Ah – Wood Screws in Pine 4.2x75mm): 740
• Screwdriving Capacity (5.0Ah High Mode – SD Screw in SPC 4x13mm): 1150
• Screwdriving Capacity (5.0Ah Medium Mode – SD Screw in SPC 4x13mm): 610
• Screwdriving Capacity (5.0Ah Low Mode – SD Screw in SPC 4x13mm): 1250
• Bolting Capacity (5.0Ah Std Tensil Bolt – M16x25mm): 1150
• Bolting Capacity (5.0Ah High Tensil Bolt – M12x25mm): 400
• Drilling Capacity (5.0Ah Plaster Board + PlyWood 21mm): 160
• Dimensions (18v 5.0Ah): L 127 x H 240 x D 60
• Weight (18v 5.0Ah): 1.7 Kg
