Panasonic EY75A7X32 Dual Voltage 14.4v/18v Impact Driver Body Only

Panasonic EY75A7X32 Dual Voltage 14.4v/18v Brushless Impact Driver Body Only

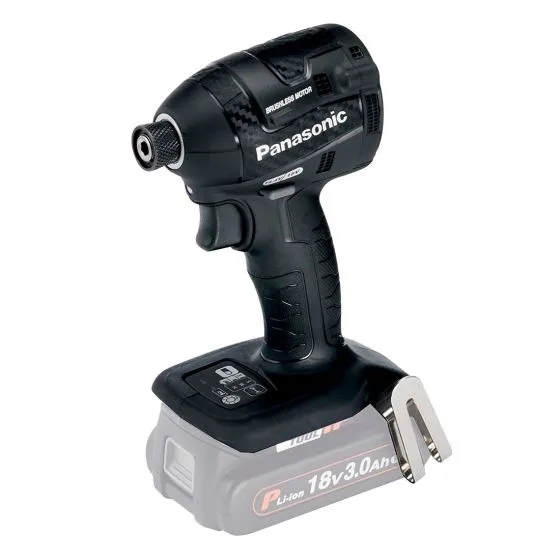

Panasonic’s latest cordless impact driver EY75A7 (replaces EY75A1) featuring advanced new features, ultra compact body and the new-generation brushless motor. Its size helps achieve an ultra-compact body that makes for comfortable handling and heavy-duty use, even in restricted spaces. Includes the Panasonic TOUGH TOOL IP technology. (IP = Intelligent Powertool)

FEATURES

• Panasonic’s all-new, shorter brushless motor has helped designers to achieve the most compact high power impact driver with optimum centre-balanced ergonomics for more comfortable working, even in restricted spaces
• The ‘Self-Drilling Screw mode’ which limits the risk of stripping the thread on fasteners or materials during screwing-in (Less than Ø4 x 15 mm) by automatically switching the rotation speed from high speed to low speed. This new function starts at highest speed to cut hole and then transfers to ‘H mode’ (High impact) to powerfully cut initial thread. After that, load is reduced so it automatically switches to slower ‘S mode’ (Soft impact) to limit potential of stripping threads on fastener or material. (Less than Ø4×15mm).
• Using their long experience in durable design, Panasonic have improved various parts such as the hammer, bearings, switches and anvil, which require especially robust design and high specifications for heavy use
• The newly enhanced internal engineering and technology would not be complete without a fresh new body design and material finish.  With the unique carbon fibre look textured finish and new comfort grip, style is added to substance with improved ergonomics
• Ultra compact body 118mm

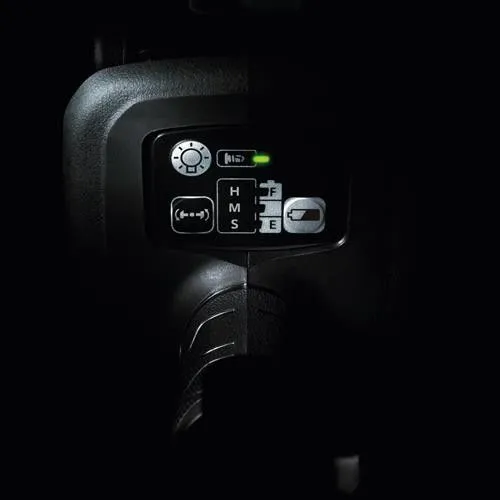

• 3 speed / torque stages (low / middle / high)
• Electric brake
• Belt hook
• LED light

Panasonic have also introduced new P-type 3.0Ah and J-type 5.0Ah Li-ion batteries for a wide range of jobs (sold separately).

• The P-type 3.0Ah battery is ultra slim and light, with a newly-developed Ø20mm battery cell and new design for easier work in cramped spaces
• The J-type 5.0Ah Li-ion battery has ‘Dynamic capacity’ for long time usage
• Their improved design and materials also allow 250% lifespan under high workload conditions, compared with Panasonic’s original Li-ion battery

SPECIFICATION

• Voltage / battery capacity: 14.4/18v
• Charging time with EY0L82B (usable / full charging): 65 / 80min
• Speed at no load in rpm: 0 – 2,500 / 0 – 1,450 / 0 – 950
• Max. torque (low / middle / high): 26 / 120 / 160Nm
• Impact (low / middle / high) in min-1 (rpm): 0 – 1,900 / 0 – 2,900 / 0 – 3,100
• Size (L x H x W): 118 x 242 x 66mm
• Weight (incl. battery): 1.7kg
