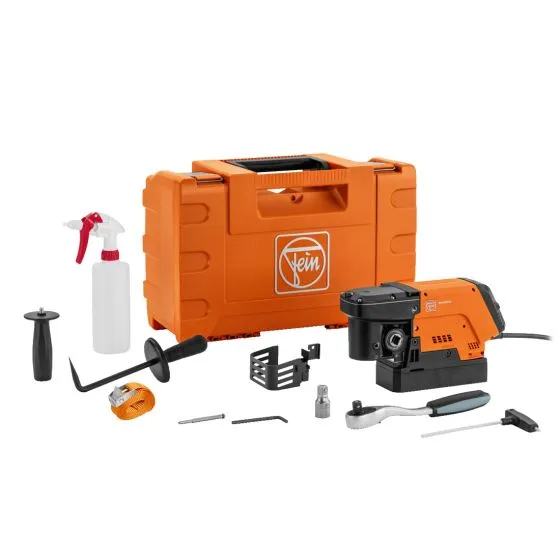

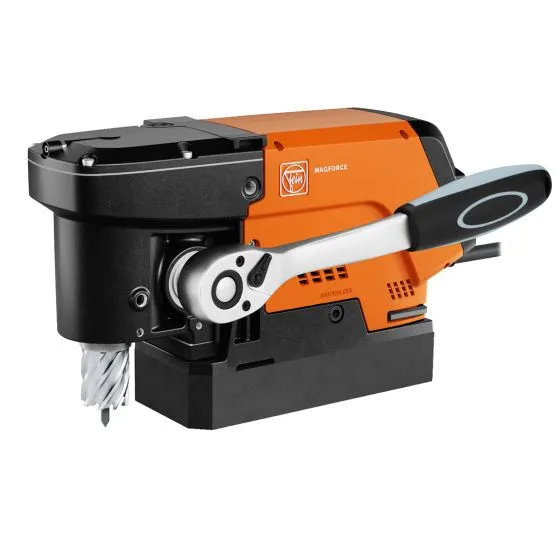

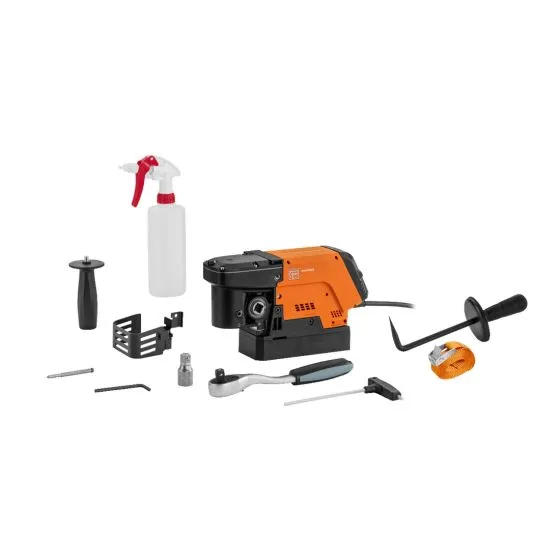

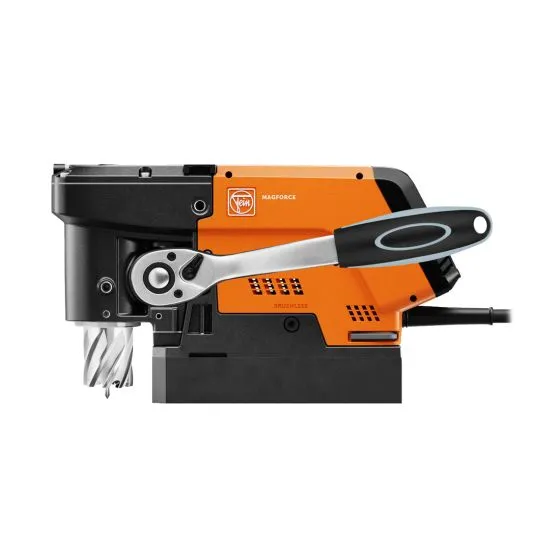

Fein KBC 36 MAGFORCE Brushless Magnetic Core Drill 1200W

Fein KBC 36 MAGFORCE Brushless Magnetic Core Drill 1200W

The KBC 36 MAGFORCE is an extremely small and light single-speed compact magnetic core drill with minimum dimensions for use in tight spaces in the workshop and on the construction site. Features a very powerful and maintenance-free brushless 1200 W high-power motor with high speed stability for continuously fast work progress as well as forward / reverse running and electronic speed setting for all drilling applications, such as core drilling, twist drilling and tapping and countersinking.

FEATURES

• Extremely small and light for working in tight and difficult-to-reach spots – including vertically and overhead – thanks to height of 169 mm, a length of 290 mm and a weight of 8.5 kg
• Extremely low wear and long-life tool design with spindle sleeve feed without clearance for accurate drilling results in tough use in industry and manual trades
• High gearbox positioning for optimum view of the drilling point
• Large installation space under the drill spindle with a stroke range of 46 mm
• Space-saving operation on both sides with ratchet
• Combined drive shaft, 1/2″ square and 8 mm hexagon socket
• Intuitive operating concept avoids mix-ups and can be clearly seen by the user
• Convenient magnetic holding force display
• Tilt sensor stops the drill motor when the tool slips or tilts
• Integrated handle
• Speed saving memory function
• Personal safety switch
• Slot for 5 mm hexagon socket wrench on the tool itself

SPECIFICATION

• Voltage: 110v/240v
• Input: 1,200 W
• Output: 680 W
• Speed, Full Load: 130 – 610 rpm
• Speed, No Load: 130 – 660 rpm
• Carbide Core Drill Bit Max. Ø: 36 mm
• HSS Core Drill Max. Ø: 36 mm
• Core Drill, Drilling Depth Max.: 35 mm
• Core Drill Holder: 3/4″ Weldon
• Stroke: 46 mm
• Magnetic Holding Power: 10,000 N
• Magnetic Foot Dimensions: 175 x 80 mm
• Cable With Plug: 3 m
• Weight According To EPTA: 8.50 kg

Available in 110v & 240v
